R7601
Features
Max Operating Temperature
200℃
Spray Cover Surface
Up or down 180°,270° or 360°.
Flow/Pressure Range
15-1490 L/min; 3-15 bar.
Features
Rotary, cleaning tanks/containers and containers up to 7.6 m in diameter
Self-lubricating/self-cleaning/self-draining design, in line with health requirements
The material is corrosion-resistant fluoropolymer resin with long service life
Cylindrical nozzle design, with greater range and impact, cleaner and more comprehensive cleaning.
Cleaning

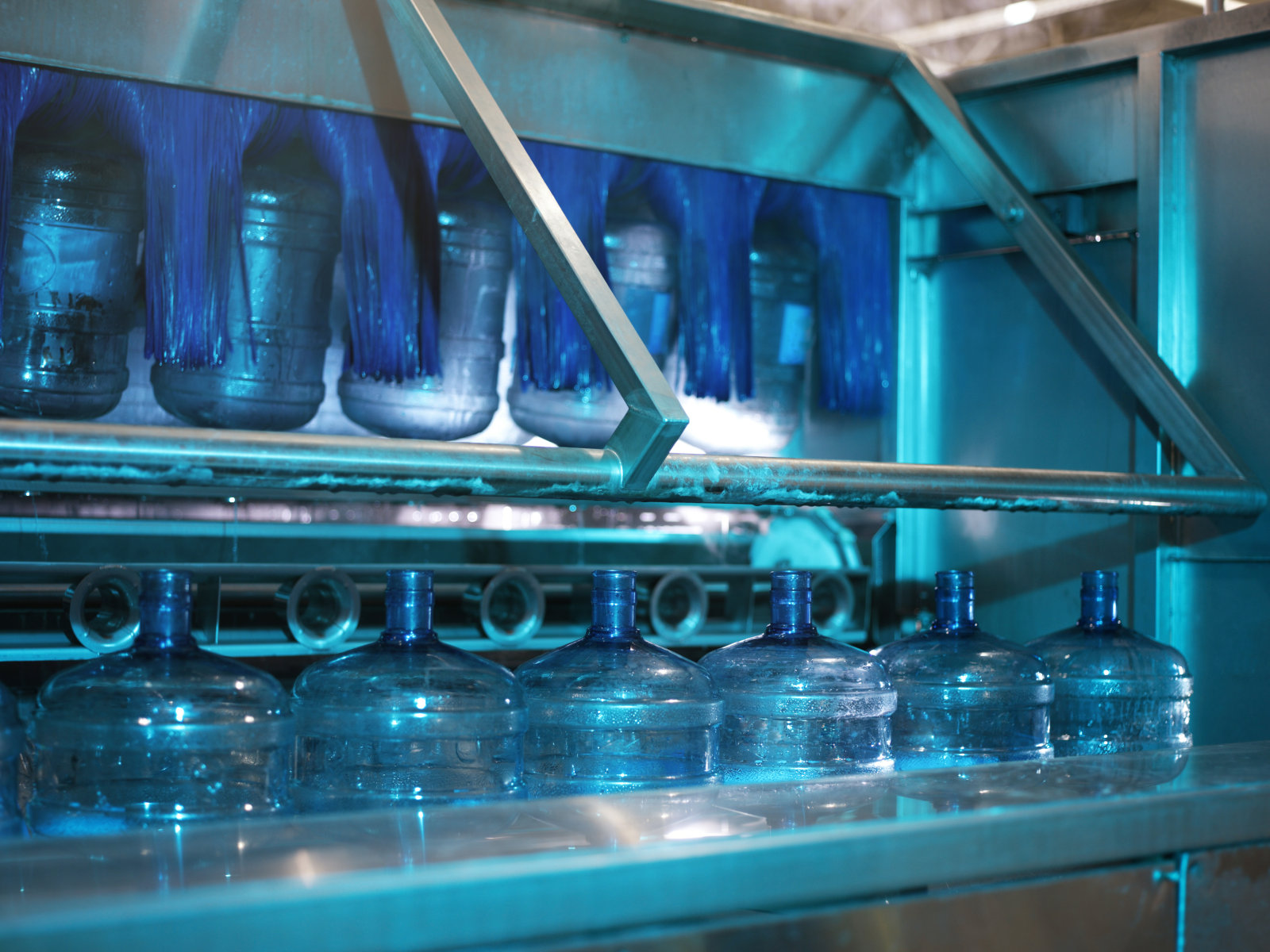

Cleaning of small size and medium size containers in chemical/pharmaceutical and food industries, especially reactor cleaning in corrosion and high temperature environments.

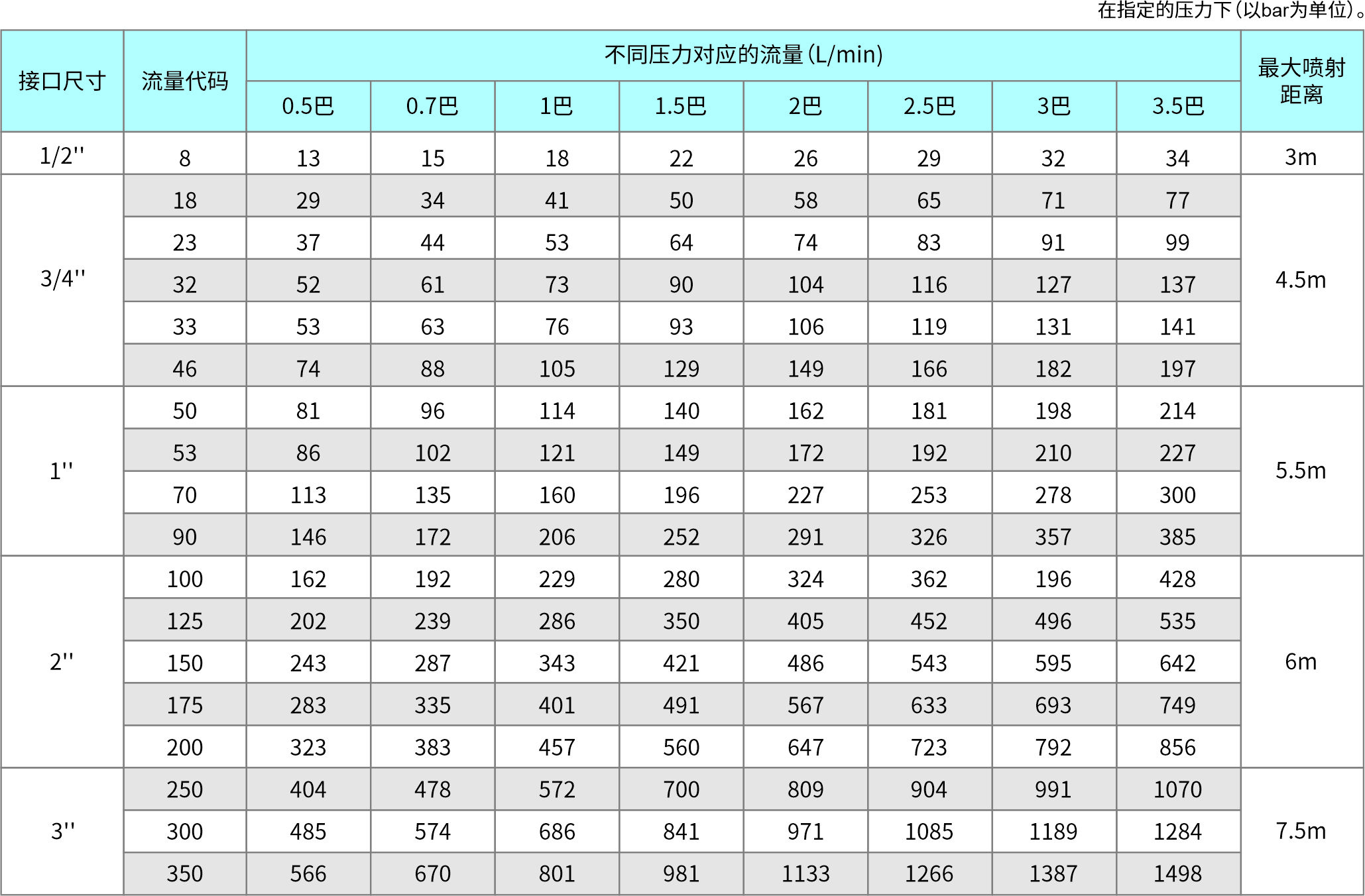

Product parameters

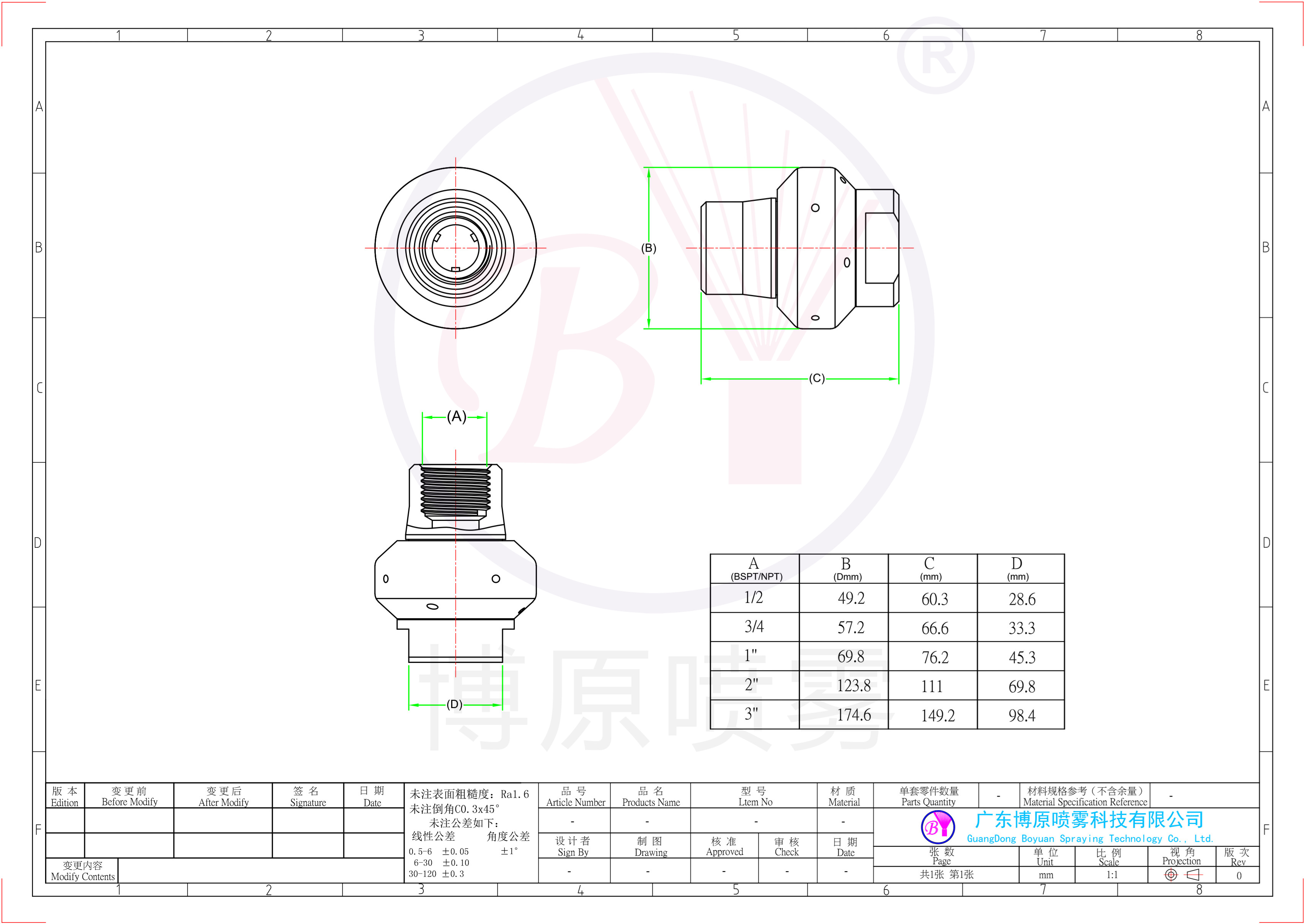

| Inlet Conn. | 1/2，3/4，1"/2"，3" Thread | Thread | BSPT/NPT | Diameter | 7.6M |
| Max Operating Temp | 200℃ | Material | PTFE | Structure | One-piece Structure |
