QC
Features
Spray Angle
25°-110°
Spray Pattern
Flat Fan spray, spray area into a linear shape.
Material
Sprinkler Head:F4/PP/PVC/PVDF/SS
Base:PVC/PP/PVDF
Features

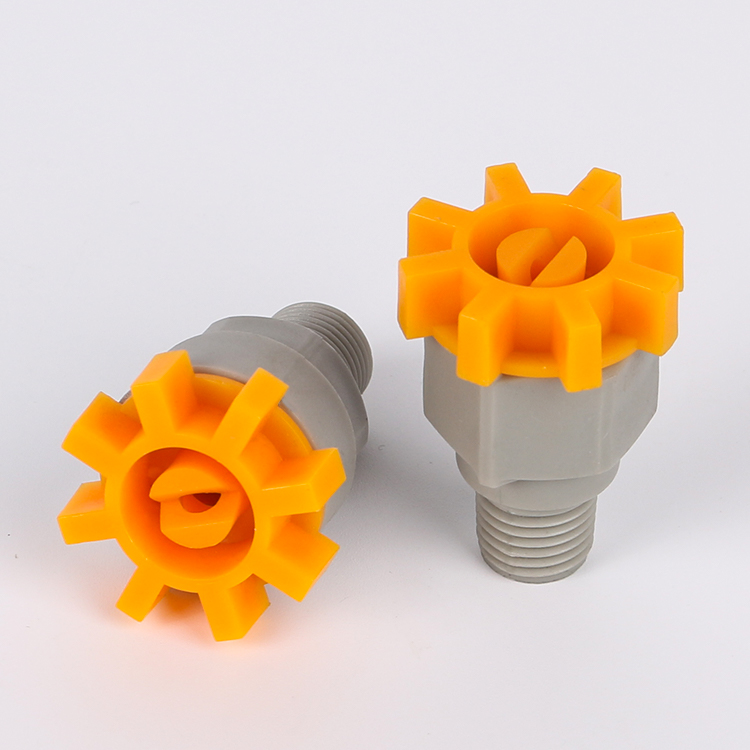

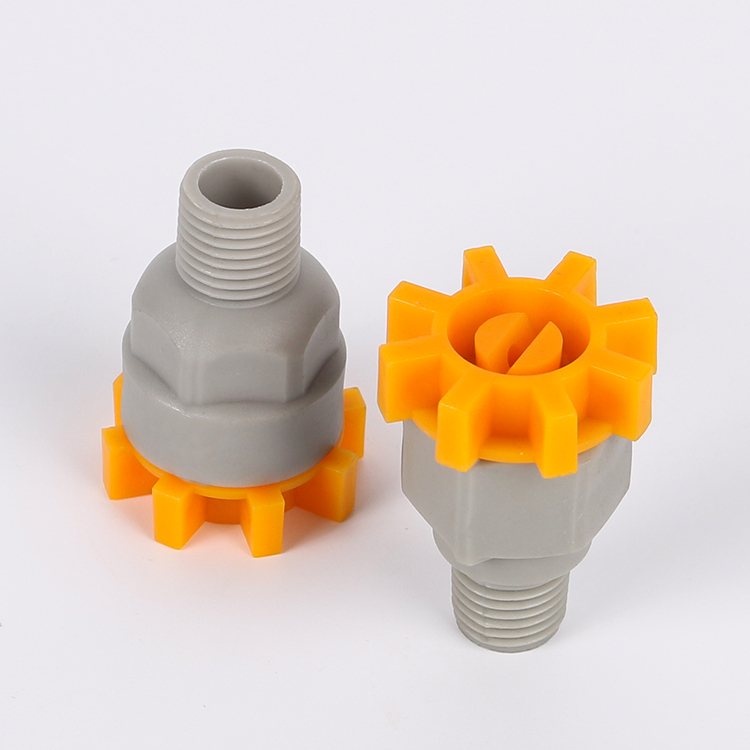

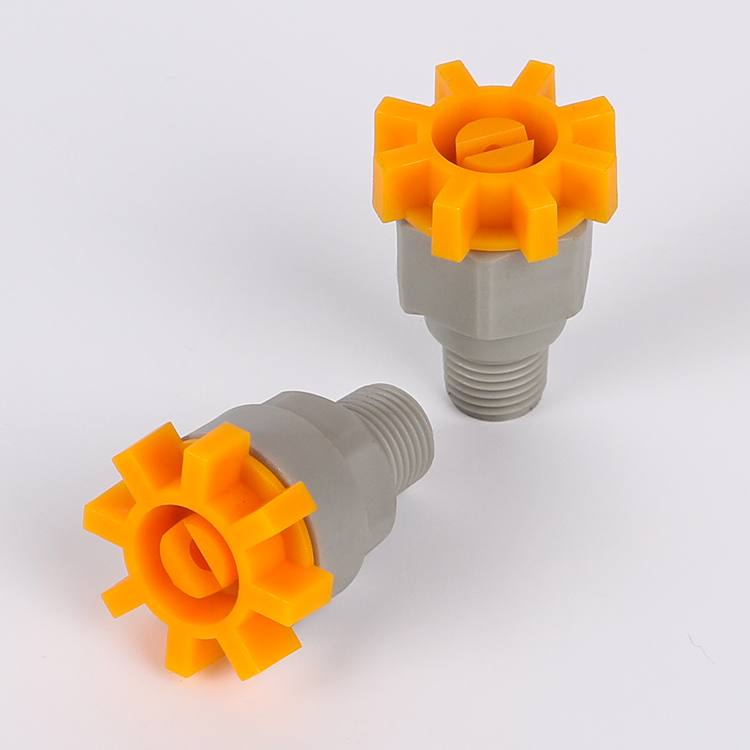

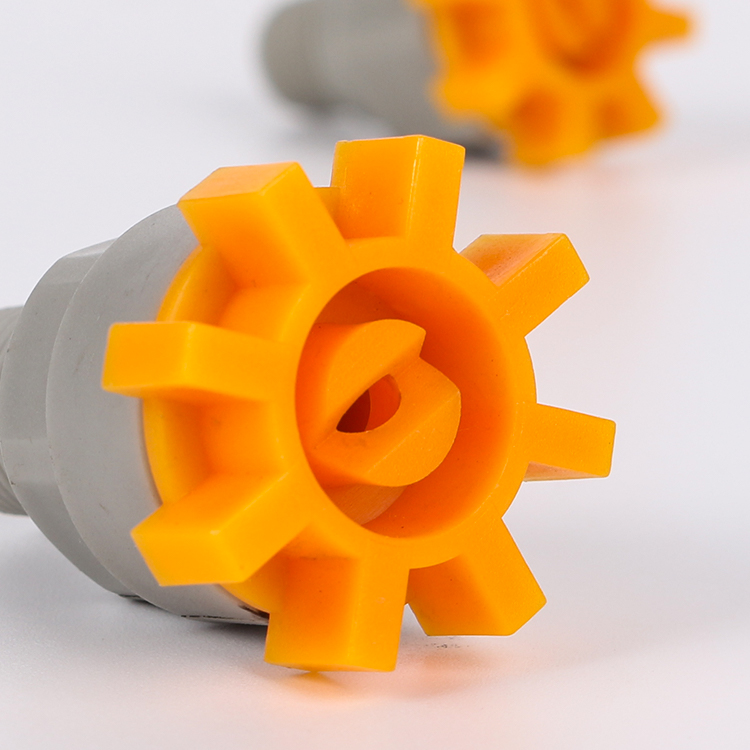

The quick-remove fan-shaped nozzle is composed of a base/a sealing ring/a quick-remove cap/a replacement nozzle.
The Material/ model of the nozzle can be replaced to save costs, and the threaded interface/splicing hole can be installed in a variety of ways.
应用
Cleaning
PCB Steel Mesh/Vehicle/Container/Metal Parts/Etching Machine/Filter/Mesh/Bottle/Soil Sand.
Spread
Etching Solution/Oil/Lubricant/Paste Solution/Acid Solution/Insect Control/Herbicide/Water Solution etc.
Cooling Down
Gas/Smoke/Heat Exchanger/Barrel Tank/Steel Plate/Steel Sheet/Roof etc.
Irrigation
Agricultural Land/Crops/Greenhouses, etc.

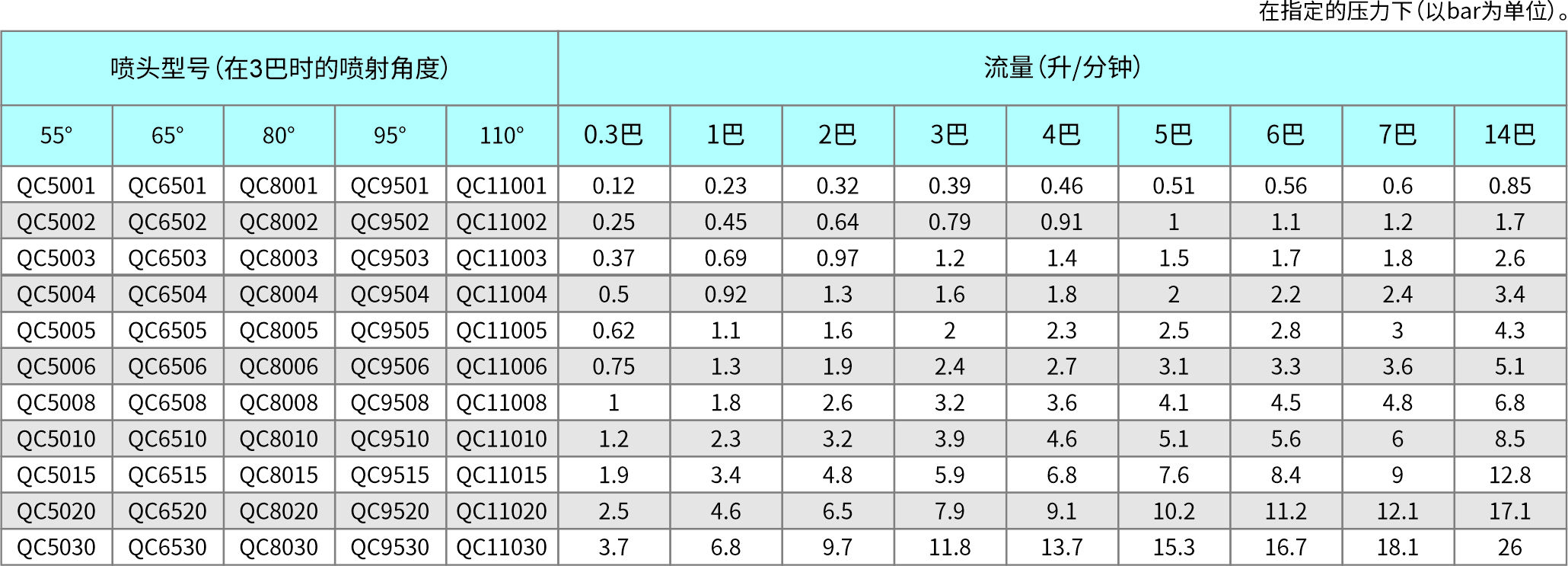

Product parameters
| Inlet Conn. | 1/4,3/8,1/2 | Thread | BSPT/NPT | Flow Rate | 0.12～26L/min |
| Spray Angle | 50°、65°、80°、95°、110° | Material | PVC/PP/PVDF | Structure | Base/Seal Ring/Quick Removal Cap/Replacement Nozzle |
