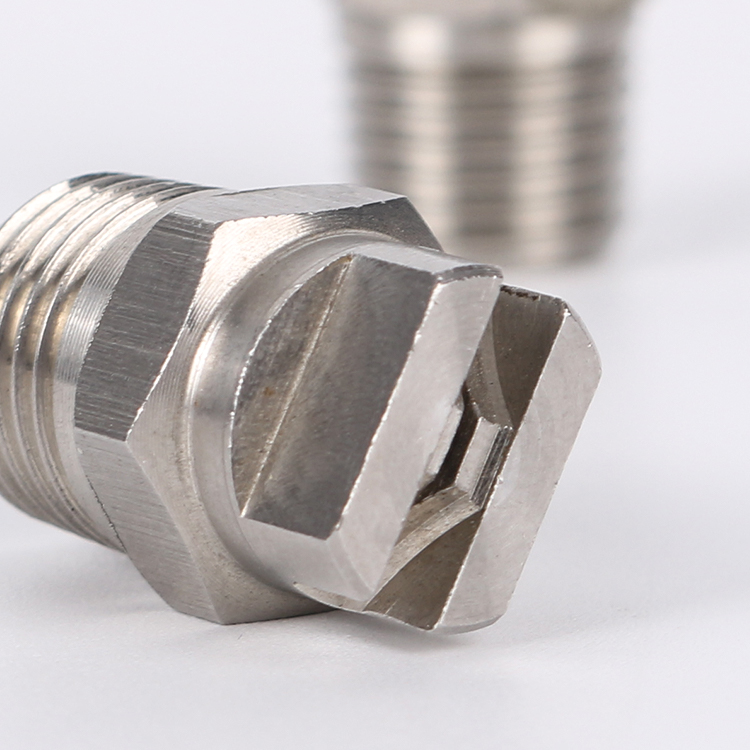

CC
Features
Spray Angle
0°（Solid）-110°.
Spray Pattern
Flat fan-shaped spray, the spray area is linear.
Material
Brass, stainless steel, plastic, etc.
Features
Unobstructed fluid flow channels minimize clogging.
The liquid column flow pattern provides the maximum striking force per unit area.
Features a tapered edge spray for headers and bars.
Clean
Cars, vehicles, containers, films, felts, filters, meshes, bottles, earth sand, chips, metal.
Spread
Etching solution, oil, lubricant, paste, acid, insect repellant, herbicide, aqueous solution, etc.
Cooling
Gas, smoke, heat exchangers, tanks, steel plates, steel sheets, roofs, etc.
Water curtain
Fireproof, fire extinguishing, heatproof, dustproof, deodorizing.

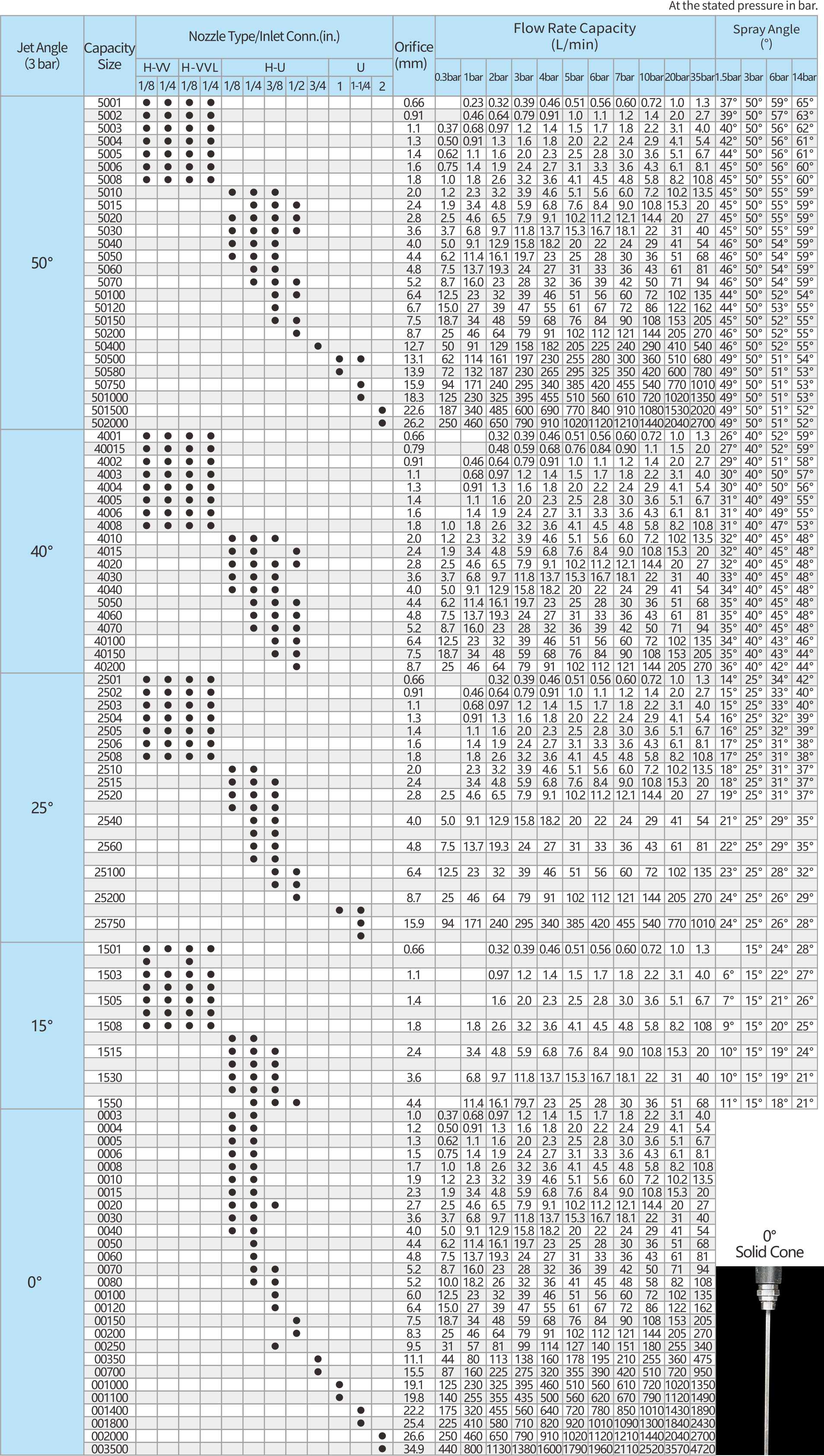

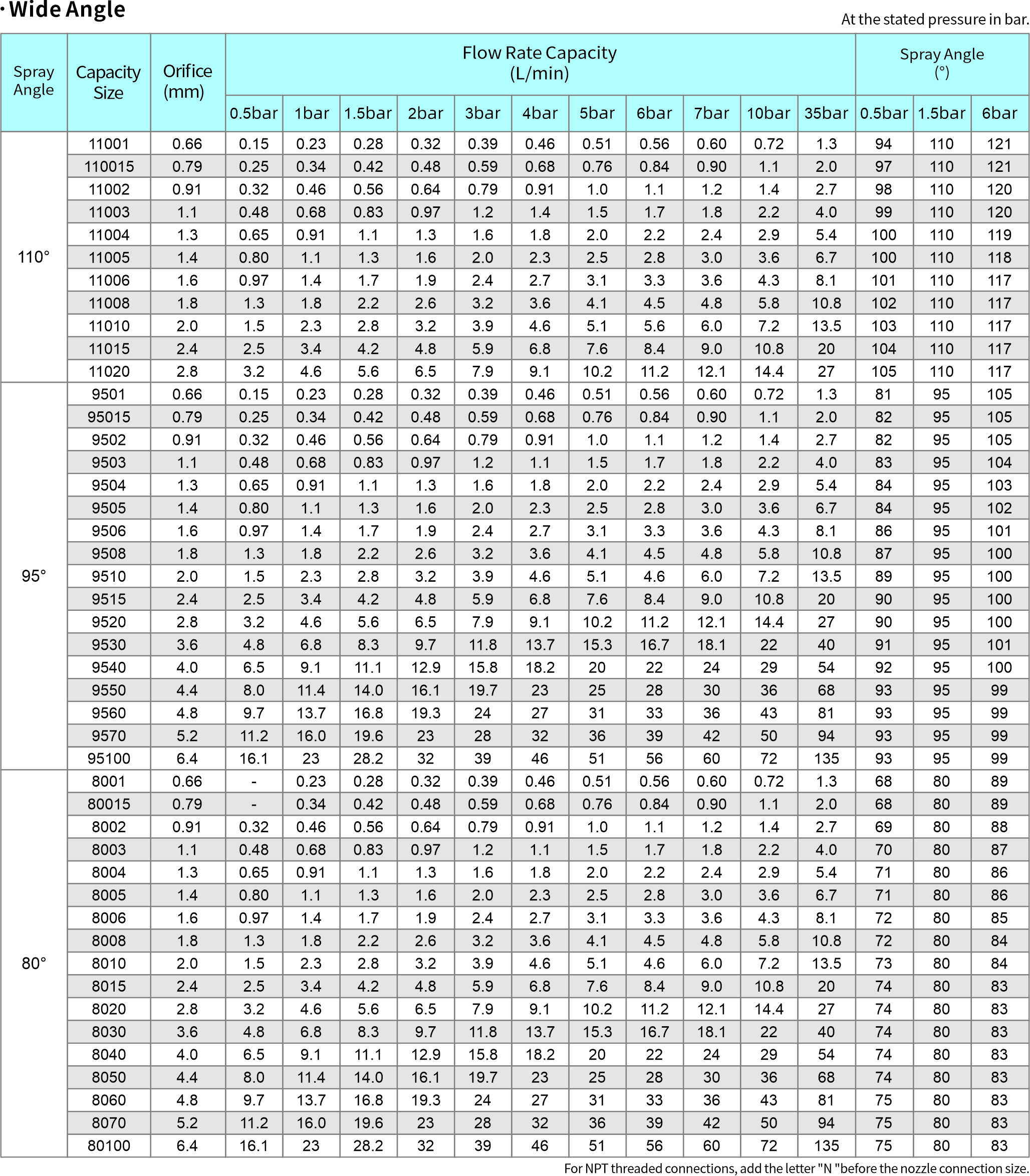

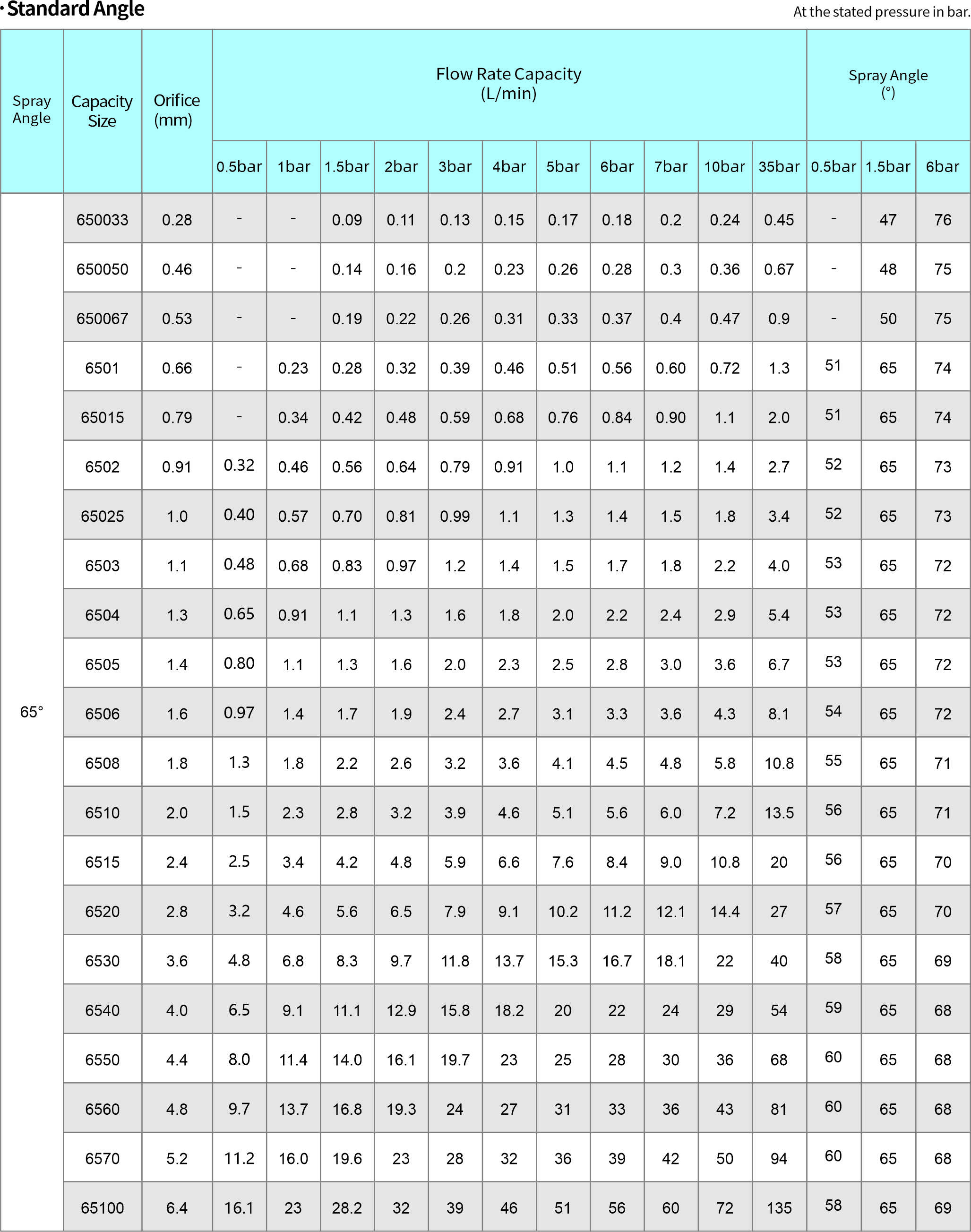

Product parameters

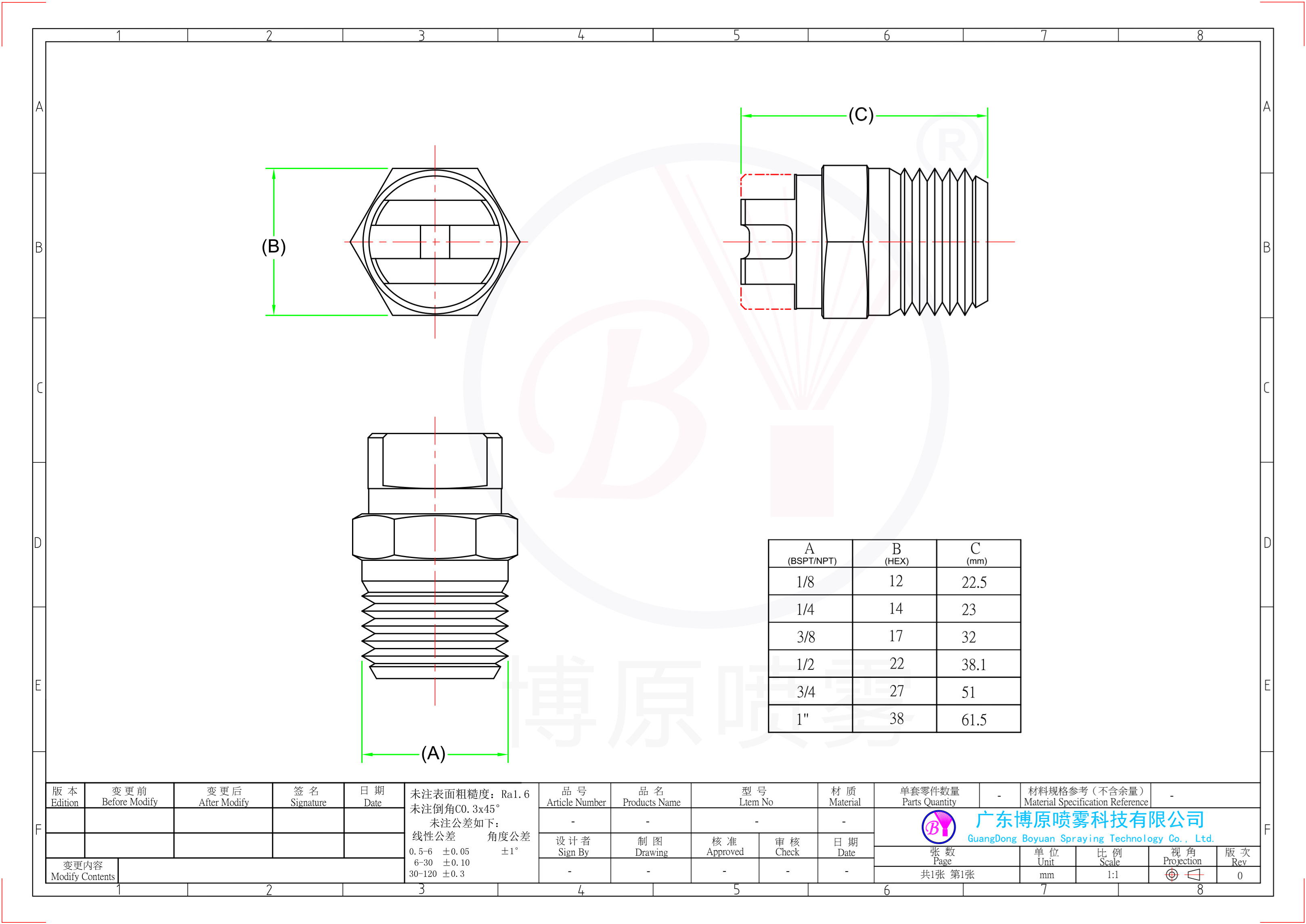

| Inlet Conn. | 1/8,1/4,3/8,1/2,3/4 | Thread | BSPT/NPT | Flow Rate | 0.23～135L/min |
| Spray Angle | 0～110° | Material | S303、S304 、S316、Plastic PP | Structure | All-metal one-piece construction |
